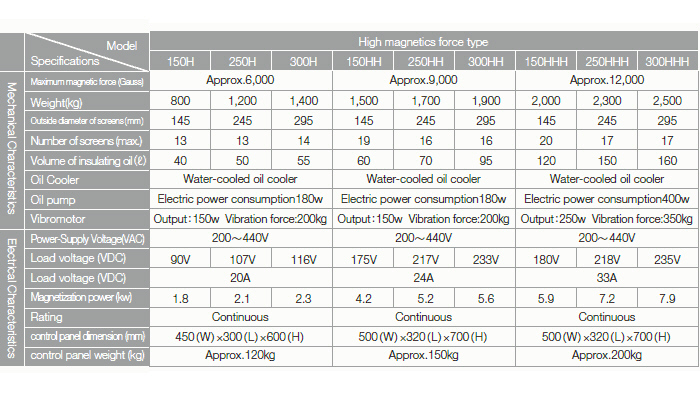

Specifications

1. Standard (3,000 gauss) to high magnetic force (12,000 gauss)
2. Additional Maghammer helps better flow rate.
3. Screen pitch can be selected for best results.
4. Controller included

CG’s designed to get the best results from dry material.

It’s been difficult to make an iron separation of grain size under 0.1mm due to particle attraction and adhesion to the separator. CG directs the magnetic flux to the center of unit and enhances higher flux density without magnetic leakage. Vibration to filters ensures effective removal of iron to improve screen flow rate.

※ The maximum magnetic field is measured values of the CG-150 series representation. There are slight differences for 250 series and 300 series.
