Specifications

1. Power Source 200/220V
2. Controller included

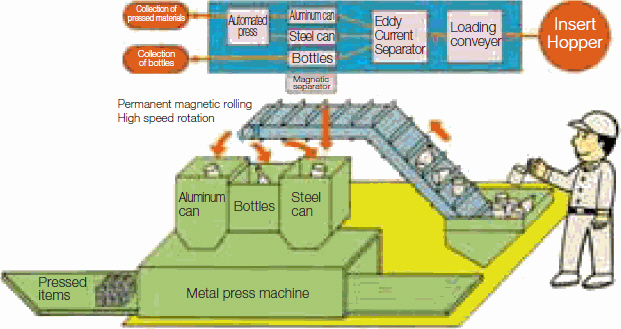

A combination of Eddy Current Separator, Overhang Electromagnetic Separator and compressing machine.

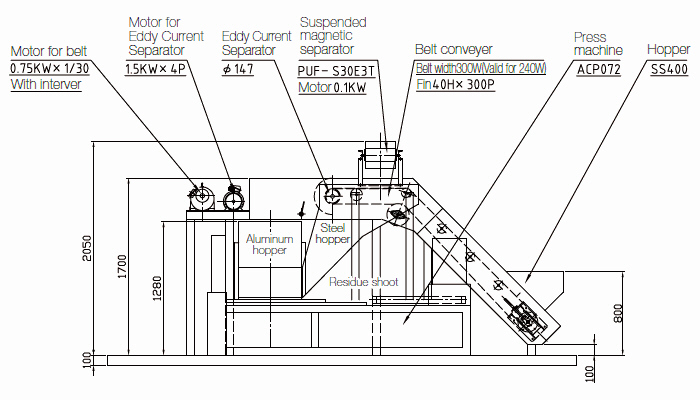

■Specifications of Shigen-Ka-Kun
① Suspension magnetic separator: PUF-S30E3T type
② Aluminum Separator: ALS-L2-type
③ Belt conveyor: finned, graded 460W (valid 240W)
④ Pressing Machine: ACP-072 type
⑤ Hopper: 650W × 580L × 300H (Approx. 50 l) Power consumption (total): 9.8kw Total weight: about 3,100kg

■Specifications of press machine(ACP-072 type)
・ Capacity: Approx. 18,000 pcs / hour
(Steel cans / 720 kg Aluminum cans / 240 kg)
・ Operation: automatic / manual
・ Pressing Method: Hydraulic Single Pressing
・ Pressing Room Dimensions: 400 × 400 × Free Length (mm)
・ Processing cycle: 40 seconds
Capacity for 1 time use
Volume 200 pcs.
Steel cans / 8kg
Aluminum Can / 2.3kg
・ Motor Size: 7.5kw
・ Press Machine Weight: About 1,300 kg
