Electrostatic Corona Separator Model: ESC Dry Material

Made it possible to separate the fine-grained metals and non-metals!

Electrostatic corona separators are mainly used for the separation of metals and non-metals. For example, they are used to separate copper wires and shredding from cable scraps, or separate electronic component scraps into metals and non-metals.

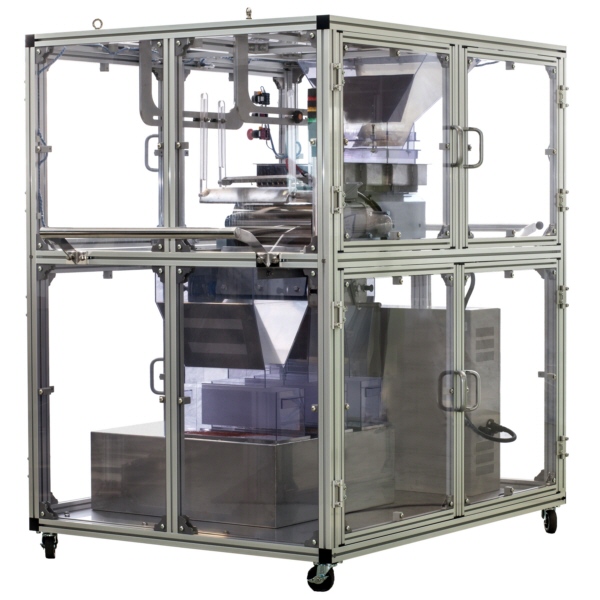

静電セパレーター ESCI型　乾式（有効幅：1500mm、3段式タイプ）

Electrostatic Corona Separator Model: ESCI (Active Width: 1500mm Three-stage type)

[Usage]

1. Recovery of copper and aluminum from shredded materials.
2. Recovery of aluminum and copper from minerals.
3. Separation of zirconium, rutile, ilmenite, tungsten, etc., from minerals.
4. Separation of resins and laminate metals.

[Condition of use]

1. Applicable grain size of 0.1 to 5 mm.
2. Since humidity affects the separation efficiency to a considerable degree, generally the ESCI should be used on dry materials at an ambient humidity of 50% or less.
